PDF下載產品參數
| 電壓 Voltage (VDC) |
電阻 Resisstance (25℃) Ω/ 相 |
輸出軸 步距角 Step angle |
電機 減速比 Motor Reduction Ratio |
齒輪箱減速比 Gearbox Reduction Ratio |
牽入轉矩 Pull-in torque 300pps (mN·m) |
啟動電壓 Starting Voltage (300pps) |
啟動轉矩 Starting torque (mN·m) |
空載牽入頻率 No-load Pull-in Frequency (pps) |
空載牽出頻率 No-load Pull-out Frequency (pps) |
絕緣電阻 No-load Insulation Resisstance (DC500V)(MΩ) |
溫升 Temperature Rise (K) |
噪聲 Noise dB(A) |
| 12 | 200±7% | 7.5° /283 | 1/85.25 | 1/3.32 | ≥ 68.8 | 10VDC | ≥ 29.4 | ≥ 400 | ≥ 500 | ★≥ 100 | ≤ 60 | ≤ 45 |

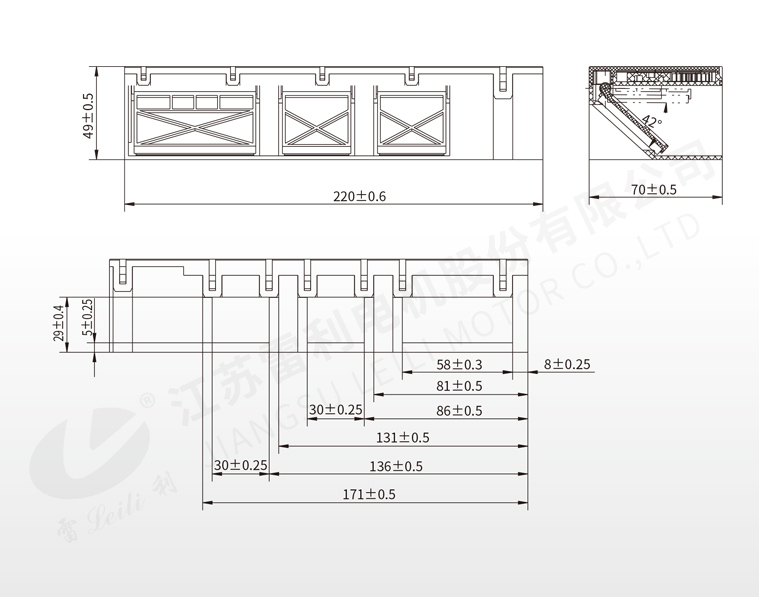

機械尺寸
